The Rectangular Coordinate System and Graphs

2.1 The Rectangular Coordinate System and Graphs

Topics covered in this section are:

  1. Plotting Ordered Pairs in the Cartesian Coordinate System
  2. Graphing Equations by Plotting Points
  3. Graphing Equations with a Graphing Utility
  4. Finding $x$-intercepts and $y-$intercepts
  5. Using the Distance Formula
  6. Using the Midpoint Formula
Road map of a city with street names on an x, y coordinate grid. Various points are marked in red on the grid lines indicating different locations on the map.
Figure 1

Tracie set out from Elmhurst, IL, to go to Franklin Park. On the way, she made a few stops to do errands. Each stop is indicated by a red dot in Figure 1. Laying a rectangular coordinate grid over the map, we can see that each stop aligns with an intersection of grid lines. In this section, we will learn how to use grid lines to describe locations and changes in locations.

2.1.1 Plotting Ordered Pairs in the Cartesian Coordinate System

An old story describes how seventeenth-century philosopher/mathematician René Descartes invented the system that has become the foundation of algebra while sick in bed. According to the story, Descartes was staring at a fly crawling on the ceiling when he realized that he could describe the fly’s location in relation to the perpendicular lines formed by the adjacent walls of his room. He viewed the perpendicular lines as horizontal and vertical axes. Further, by dividing each axis into equal unit lengths, Descartes saw that it was possible to locate any object in a two-dimensional plane using just two numbers—the displacement from the horizontal axis and the displacement from the vertical axis.

While there is evidence that ideas similar to Descartes’ grid system existed centuries earlier, it was Descartes who introduced the components that comprise the Cartesian coordinate system, a grid system having perpendicular axes. Descartes named the horizontal axis the x-axis and the vertical axis the y-axis.

The Cartesian coordinate system, also called the rectangular coordinate system, is based on a two-dimensional plane consisting of the x-axis and the y-axis. Perpendicular to each other, the axes divide the plane into four sections. Each section is called a quadrant; the quadrants are numbered counterclockwise as shown in Figure 2.

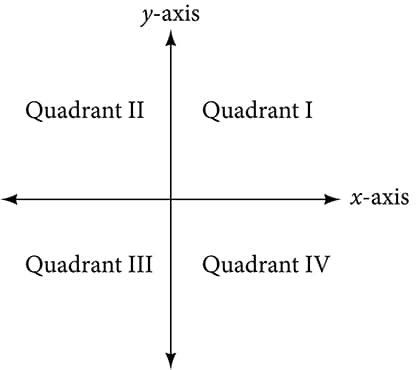

This is an image of an x, y plane with the axes labeled. The upper right section is labeled: Quadrant I.  The upper left section is labeled: Quadrant II.  The lower left section is labeled: Quadrant III.  The lower right section is labeled: Quadrant IV.
Figure 2

The center of the plane is the point at which the two axes cross. It is known as the origin, or point $(0,0)$. From the origin, each axis is further divided into equal units: increasing, positive numbers to the right on the $x$-axis and up the $y$-axis; decreasing, negative numbers to the left on the $x$-axis and down the $y$-axis. The axes extend to positive and negative infinity as shown by the arrowheads in Figure 3.

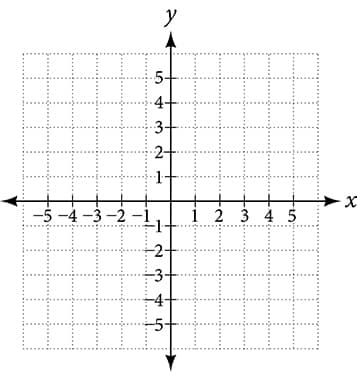

This is an image of an x, y coordinate plane.  The x and y axis range from negative 5 to 5.
Figure 3

Each point in the plane is identified by its x-coordinate, or horizontal displacement from the origin, and its y-coordinate, or vertical displacement from the origin. Together, we write them as an ordered pair indicating the combined distance from the origin in the form $(x,y)$. An ordered pair is also known as a coordinate pair because it consists of $x$- and $y$-coordinates. For example, we can represent the point $(3,−1)$ in the plane by moving three units to the right of the origin in the horizontal direction, and one unit down in the vertical direction. See Figure 4.

This is an image of an x, y coordinate plane. The x and y axis range from negative 5 to 5.  The point (3, -1) is labeled.  An arrow extends rightward from the origin 3 units and another arrow extends downward one unit from the end of that arrow to the point.
Figure 4

When dividing the axes into equally spaced increments, note that the $x$-axis may be considered separately from the $y$-axis. In other words, while the $x$-axis may be divided and labeled according to consecutive integers, the $y$-axis may be divided and labeled by increments of $2$, or $10$, or $100$. In fact, the axes may represent other units, such as years against the balance in a savings account, or quantity against cost, and so on. Consider the rectangular coordinate system primarily as a method for showing the relationship between two quantities.

CARTESIAN COORDINATE SYSTEM

A two-dimensional plane where the

  • x-axis is the horizontal axis
  • y-axis is the vertical axis

A point in the plane is defined as an ordered pair, $(x,y)$, such that $x$ is determined by its horizontal distance from the origin and $y$ is determined by its vertical distance from the origin.

Example 1

Plot the points $(-2, 4), (3, 3)$ and $(0, -3)$ in the plane.

Solution

To plot the point $(−2, 4)$, begin at the origin. The $x$-coordinate is $–2$, so move two units to the left. The $y$-coordinate is $4$, so then move four units up in the positive $y$ direction.

To plot the point $(3, 3)$, begin again at the origin. The $x$-coordinate is $3$, so move three units to the right. The $y$-coordinate is also $3$, so move three units up in the positive $y$ direction.

To plot the point $(0, −3)$, begin again at the origin. The $x$-coordinate is $0$. This tells us not to move in either direction along the x-axis. The $y$-coordinate is $–3$, so move three units down in the negative $y$ direction. See the graph in Figure 5.

This is an image of a graph on an x, y coordinate plane. The x and y axes range from negative 5 to 5.  The points (-2, 4); (3, 3); and (0, -3) are labeled.  Arrows extend from the origin to the points.
Figure 5

Note that when either coordinate is zero, the point must be on an axis. If the $x$-coordinate is zero, the point is on the $y$-axis. If the $y$coordinate is zero, the point is on the $x$-axis.

2.1.2 Graphing Equations by Plotting Points

We can plot a set of points to represent an equation. When such an equation contains both an $x$ variable and a $y$ variable, it is called an equation in two variables. Its graph is called a graph in two variables. Any graph on a two-dimensional plane is a graph in two variables.

Suppose we want to graph the equation $y=2x−1$. We can begin by substituting a value for $y$ into the equation and determining the resulting value of $y$. Each pair of $x$- and $y$-values is an ordered pair that can be plotted. Table 1 lists values of $x$ from $–3$ to $3$ and the resulting values for $y$.

$x$$y=2x-1$$(x, y)$
$-3$$y=2(-3)-1=-7$$(-3, -7)$
$-2$$y=2(-2)-1=-5$$(-2, -5)$
$-1$$y=2(-1)-1=-3$$(-1, -3)$
$0$$y=2(0)-1=-1$$(0, -1)$
$1$$y=2(1)-1=1$$(1, 1)$
$2$$y=2(4)-1=3$$(2, 3)$
$3$$y=2(3)-1=5$$(3, 5)$
Table 1

We can plot the points in the table. The points for this particular equation form a line, so we can connect them. See Figure 6. This is not true for all equations.

This is a graph of a line on an x, y coordinate plane. The x- and y-axis range from negative 8 to 8.  A line passes through the points (-3, -7); (-2, -5); (-1, -3); (0, -1); (1, 1); (2, 3); and (3, 5).
Figure 6

Note that the $x$-values chosen are arbitrary, regardless of the type of equation we are graphing. Of course, some situations may require particular values of $x$ to be plotted in order to see a particular result. Otherwise, it is logical to choose values that can be calculated easily, and it is always a good idea to choose values that are both negative and positive. There is no rule dictating how many points to plot, although we need at least two to graph a line. Keep in mind, however, that the more points we plot, the more accurately we can sketch the graph.

HOW TO: Given an equation, graph by plotting points.

  1. Make a table with one column labeled $x$, a second column labeled with the equation, and a third column listing the resulting ordered pairs.
  2. Enter $x$-values down the first column using positive and negative values. Selecting the $x$-values in numerical order will make the graphing simpler.
  3. Select $x$-values that will yield $y$-values with little effort, preferably ones that can be calculated mentally.
  4. Plot the ordered pairs.
  5. Connect the points if they form a line.

Example 2

Graph the equation $y=-x+2$ by plotting points.

Solution

First, we construct a table similar to Table 2. Choose $x$ values and calculate $y$.

$x$$y=-x+2$$(x, y)$
$-5$$y=-(-5)+2=7$$(-5, 7)$
$-3$$y=-(-3)+2=5$$(-3, 5)$
$-1$$y=-(-1)+2=3$$(-1, 3)$
$0$$y=-(0)+2=2$$(0, 2)$
$1$$y=-(1)+2=1$$(1, 1)$
$3$$y=-(3)+2=-1$$(3, -1)$
$5$$y=-(5)+2=-3$$(5, -3)$
Table 2

Now plot the points. Connect them if they form a line. See Figure 7.

This image is a graph of a line on an x, y coordinate plane. The x-axis includes numbers that range from negative 7 to 7. The y-axis includes numbers that range from negative 5 to 8.  A line passes through the  points: (-5, 7); (-3, 5); (-1, 3); (0, 2); (1, 1); (3, -1); and (5, -3).
Figure 7

2.1.3 Graphing Equations with a Graphing Utility

Most graphing calculators require similar techniques to graph an equation. The equations sometimes have to be manipulated so they are written in the style $y=$_____. The TI-84 Plus, and many other calculator makes and models, have a mode function, which allows the window (the screen for viewing the graph) to be altered so the pertinent parts of a graph can be seen.

For example, the equation $y=2x−20$ has been entered in the TI-84 Plus shown in Figure 8a. In Figure 8b, the resulting graph is shown. Notice that we cannot see on the screen where the graph crosses the axes. The standard window screen on the TI-84 Plus shows $-10≤x≤10$, and $-10≤y≤10$. See Figure 8c.

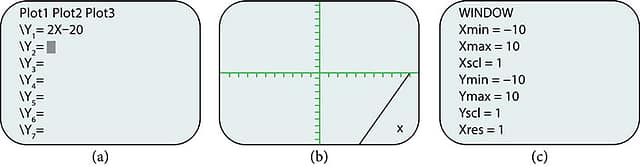

This is an image of three side-by-side calculator screen captures.  The first screen is the plot screen with the function y sub 1 equals two times x minus twenty.  The second screen shows the plotted line on the coordinate plane.  The third screen shows the window edit screen with the following settings: Xmin = -10; Xmax = 10; Xscl = 1; Ymin = -10; Ymax = 10; Yscl = 1; Xres = 1.
Figure 8 a. Enter the equation. b. This is the graph in the original window. c. These are the original settings.

By changing the window to show more of the positive $x$-axis and more of the negative $y$-axis, we have a much better view of the graph and the $x$- and $y$-intercepts. See Figure 9a and Figure 9b.

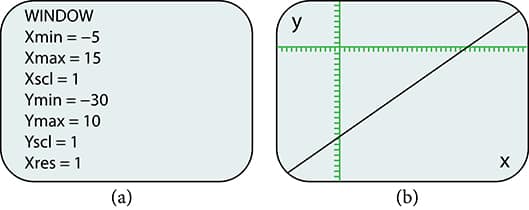

This is an image of two side-by-side calculator screen captures.  The first screen is the window edit screen with the following settings: Xmin = negative 5; Xmax = 15; Xscl = 1; Ymin = -30; Ymax = 10; Yscl = 1; Xres =1.  The second screen shows the plot of the previous graph, but is more centered on the line.
Figure 9 a. This screen shows the new window settings. b. We can clearly view the intercepts in the new window.

Example 3

Use a graphing utility to graph the equation: $y=-\frac{2}{3}x+\frac{4}{3}$.

Solution

Enter the equation in the $y$= function of the calculator. Set the window settings so that both the $x$- and $y$- intercepts are showing in the window. See Figure 10.

This image is of a line graph on an x, y coordinate plane. The x-axis has numbers that range from negative 3 to 4. The y-axis has numbers that range from negative 3 to 3.  The function y = -2x/3 + 4/3 is plotted.
Figure 10

2.1.4 Finding $x$-intercepts and $y$-intercepts

The intercepts of a graph are points at which the graph crosses the axes. The x-intercept is the point at which the graph crosses the $x$-axis. At this point, the $y$-coordinate is zero. The y-intercept is the point at which the graph crosses the $y$-axis. At this point, the $x$-coordinate is zero.

To determine the $x$-intercept, we set $y$ equal to zero and solve for $x$. Similarly, to determine the $y$-intercept, we set $x$ equal to zero and solve for $y$. For example, lets find the intercepts of the equation $y=3x-1$.

To find the $x$-intercept, set $y=0$.

$y=3x-1$
$0=3x-1$
$1=3x$
$\frac{1}{3}=x$
$(\frac{1}{3}, 0)$$x$-intercept

To find the $y$-intercept, set $x=0$.

$y=3x-1$
$y=3(0)-1$
$y=-1$
$(0, -1)$$y$-intercept

We can confirm that our results make sense by observing a graph of the equation as in Figure 11. Notice that the graph crosses the axes where we predicted it would.

This is an image of a line graph on an x, y coordinate plane. The x and y-axis range from negative 4 to 4.  The function y = 3x – 1 is plotted on the coordinate plane.
Figure 11

GIVEN AN EQUATION, FIND THE INTERCEPTS.

  • Find the $x$-intercept by setting $y=0$ and solving for $x$.
  • Find the $y$-intercept by setting $x=0$ and solving for $y$.

Example 4

Find the intercepts of the equation $y=−3x−4$. Then sketch the graph using only the intercepts.

Solution

Set $y=0$ to find the $x$-intercept.

$y=-3x-4$
$0=-3x-4$
$4=-3x$
$-\frac{4}{3}=x$
$(-\frac{4}{3}, 0)$$x$-intercept

Set $x=0$ to find the $y$-intercept.

$y=-3x-4$
$y=-3(0)-4$
$y=-4$
$(0, -4)$$y$-intercept

Plot both points, and draw a line passing through them as in Figure 12.

This is an image of a line graph on an x, y coordinate plane. The x-axis ranges from negative 5 to 5. The y-axis ranges from negative 6 to 3.  The line passes through the points (-4/3, 0) and (0, -4).
Figure 12

2.1.5 Using the Distance Formula

Derived from the Pythagorean Theorem, the distance formula is used to find the distance between two points in the plane. The Pythagorean Theorem, $a^{2}+b^{2}=c^{2}$, is based on a right triangle where $a$ and $b$ are the lengths of the legs adjacent to the right angle, and $c$ is the length of the hypotenuse. See Figure 13.

This is an image of a triangle on an x, y coordinate plane. The x and y axes range from 0 to 7. The points (x sub 1, y sub 1); (x sub 2, y sub 1); and (x sub 2, y sub 2) are labeled and connected to form a triangle.  Along the base of the triangle, the following equation is displayed: the absolute value of x sub 2 minus x sub 1 equals a. The hypotenuse of the triangle is labeled: d = c.  The remaining side is labeled: the absolute value of y sub 2 minus y sub 1 equals b.
Figure 13

The relationship of sides $|x_2 – x_1|$ and $|y_2 – y_1|$ to side $d$ is the same as that of sides $a$ and $b$ to side $c$. We use the absolute value symbol to indicate that the length is a positive number because the absolute value of any number is positive. (For example, $|-3|=3$.) The symbols $|x_2 – x_1|$ and $|y_2 – y_1|$ indicate that the lengths of the sides of the triangle are positive. To find the length $c$, take the square root of both sides of the Pythagorean Theorem.

$c^{2}=a^{2}+b^{2}$ -> $c=\sqrt{a^{2}+b^{2}}$

It follows that the distance formula is given as

$d^{2}=(x_2 – x_1)^{2} + (y_2-y_1)^{2}$ -> $d=\sqrt{(x_2 – x_1)^{2} + (y_2 – y_1)^{2}}$

We do not have to use the absolute value symbols in this definition because any number squared is positive.

THE DISTANCE FORMULA

Given endpoints $(x_1, y_1)$ and $(x_2, y_2)$, the distance between two points is given by
$d=\sqrt{(x_2 – x_1)^{2} + (y_2 – y_1)^{2}}$

Example 5

Find the distance between the points $(-3, -1)$ and $(2, 3)$.

Solution

Let us first look at the graph of the two points. Connect the points to form a right triangle as in Figure 14.

This is an image of a triangle on an x, y coordinate plane. The x-axis ranges from negative 4 to 4. The y-axis ranges from negative 2 to 4.  The points (-3, -1); (2, -1); and (2, 3) are plotted and labeled on the graph.  The points are connected to form a triangle.
Figure 14

Then, calculate the length of using the distance formula.

$\begin{align*} d&=\sqrt{(x_2 – x_1)^{2} + (y_2 – y_1)^{2}} \\ d&=\sqrt{(2 – (-3))^{2} + (3 – (-1))^{2}} \\ &=\sqrt{(5)^{2}+(4)^{2}} \\ &= \sqrt{25+16} \\ &= \sqrt{41} \end{align*}$

Example 6

Let’s return to the situation introduced at the beginning of this section.

Tracie set out from Elmhurst, IL, to go to Franklin Park. On the way, she made a few stops to do errands. Each stop is indicated by a red dot in Figure 1. Find the total distance that Tracie traveled. Compare this with the distance between her starting and final positions.

Solution

The first thing we should do is identify ordered pairs to describe each position. If we set the starting position at the origin, we can identify each of the other points by counting units east (right) and north (up) on the grid. For example, the first stop is $1$ block east and $1$ block north, so it is at $(1, 1)$. The next stop is $5$ blocks to the east, so it is at $(5, 1)$. After that, she traveled $3$ blocks east and $2$ blocks north to $(8, 3)$. Lastly, she traveled $4$ blocks north to $(8, 7)$. We can label these points on the grid as in Figure 15.

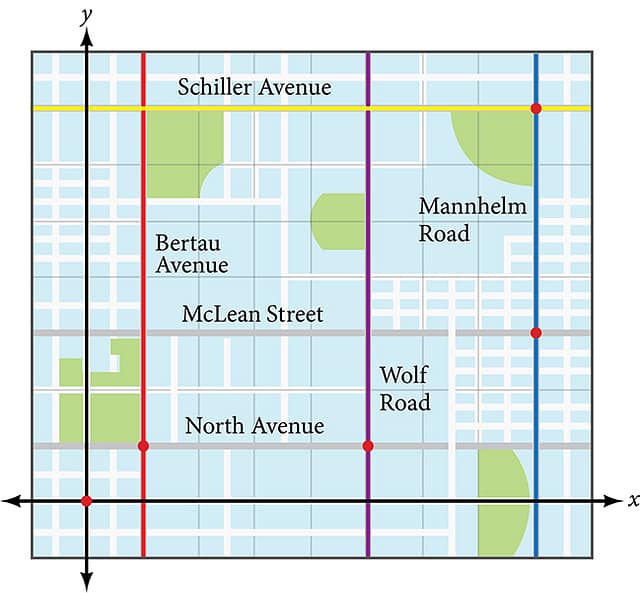

This is an image of a road map of a city. The point (1, 1) is on North Avenue and Bertau Avenue.  The point (5, 1) is on North Avenue and Wolf Road.  The point (8, 3) is on Mannheim Road and McLean Street.  The point (8, 7) is on Mannheim Road and Schiller Avenue.
Figure 15

Next, we can calculate the distance. Note that each grid unit represents $1,000$ feet.

  • From her starting location to her first stop at $(1, 1)$, Tracie might have driven north $1,000$ feet and then east $1,000$ feet, or vice versa. Either way, she drove $2,000$ feet to her first stop.
  • Her second stop is at $(5,1)$. So from $(1, 1)$ to $(5, 1)$, Tracie drove east $4,000$ feet.
  • Her third stop is at $(8, 3)$. There are a number of routes from $(5, 1)$ to $(8, 3)$. Whatever route Tracie decided to use, the distance is the same, as there are no angular streets between the two points. Let’s say she drove east $3,000$ feet and then north $2,000$ feet for a total of $5,000$ feet.
  • Tracie’s final stop is at $(8, 7)$. This is a straight drive north from $(8, 3)$ for a total of $4,000$ feet.

Next, we will add the distances listed in Table 3.

From/ToNumber of Feet Driven
$(0, 0)$ to $(1, 1)$$2,000$
$(1, 1)$ to $(5, 1)$$4,000$
$(5, 1)$ to $(8, 3)$$5,000$
$(8, 3)$ to $(8, 7)$$4,000$
Total$15,000$
Table 3

The total distance Tracie drove is $15,000$ feet, or $2.84$ miles. This is not, however, the actual distance between her starting and ending positions. To find this distance, we can use the distance formula between the points $(0, 0)$ and $(8, 7)$.

$\begin {align*} d&=\sqrt{(8-0)^{2} + (7-0)^{2}} \\&=\sqrt{64+49} \\ &= \sqrt{113} \\ &\approx{10.63} \ units \end{align*}$

At $1,000$ feet per grid unit, the distance between Elmhurst, IL, to Franklin Park is $10,630.14$ feet, or $2.01$ miles. The distance formula results in a shorter calculation because it is based on the hypotenuse of a right triangle, a straight diagonal from the origin to the point $(8, 7)$. Perhaps you have heard the saying “as the crow flies,” which means the shortest distance between two points because a crow can fly in a straight line even though a person on the ground has to travel a longer distance on existing roadways.

2.1.6 Using the Midpoint Formula

When the endpoints of a line segment are known, we can find the point midway between them. This point is known as the midpoint and the formula is known as the midpoint formula. Given the endpoints of a line $(x_1, y_1)$ and $(x_2, y_2)$, the midpoint formula states how to find the coordinates of the midpoint $M$.

$M=(\frac{x_1 + x_2}{2}, \frac{y_1 +y_2}{2})$

A graphical view of a midpoint is shown in Figure 16. Notice that the line segments on either side of the midpoint are congruent.

This is a line graph on an x, y coordinate plane with the x and y axes ranging from 0 to 6. The points (x sub 1, y sub 1), (x sub 2, y sub 2), and (x sub 1 plus x sub 2 all over 2, y sub 1 plus y sub 2 all over 2) are plotted.  A straight line runs through these three points. Pairs of short parallel lines bisect the two sections of the line to note that they are equivalent.
Figure 16

Example 7

Find the midpoint of the line segment with the endpoints $(7, -2)$ and $(9, 5)$.

Solution

Use the formula to find the midpoint of the line segment.

$\begin{align*} (\frac{x_1 + x_2}{2}, \frac{y_1 +y_2}{2}) &= (\frac{7 + 9}{2}, \frac{-2 + 5}{2}) \\ &=(8, \frac{3}{2}) \end{align*}$

Example 8

The diameter of a circle has endpoints $(-1, -4)$ and $(5, -4)$. Find the center of the circle.

Solution

The center of a circle is the center, or midpoint, of its diameter. Thus, the midpoint formula will yield the center point.

$(\frac{x_1 + x_2}{2}, \frac{y_1 +y_2}{2})$
$(\frac{-1 + 5}{2}, \frac{-4 +(-4)}{2})= (\frac{4}{2}, \frac{-8}{2}) = (2, -4)$
